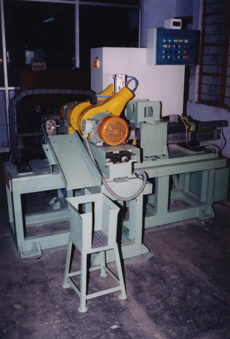

Chamfering machine BL/CG/250
|
|
| |
|
Characters
High volume continuous production.
Two side/Single side chamfer at a time.
Magazine feeding.
Automatic ejection after grinding.
Pneumatically operated auto feeding |
| |
|
Specification
Minimum & Maximum radius - Min R150mm & Max R200mm
Minimum & Maximum Width - Min 100mm & Max 220mm
Grinding wheel motor speed
& Power - 3000rpm & 5Hp
Grinding wheel motor slide
stroke - 75mm(Manual)
Diamond wheel Dia - 125mm
Total connected power - 11Hp
Floor space - L - 2000mm
W - 2000mm
H - 1250mm |
|
