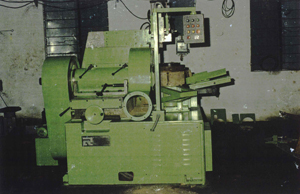

Out side radius grinding ORG/250
|
|
| |
Characters
Suitable for parallel and taper blocks.
High volume and continuous production.
Loading chute and auto feeding as optional.
Manual thickness setting. |
| |
Specification
Minimum & Maximum radius - Min 120mm & Max 250mm
Minimum & Maximum Width - Min 50mm & Max 280mm
Minimum & Maximum Thick - Min 6mm & Max 25mm
Spindle speed & Power - 1440rpm & 40Hp
BOB unit power & rpm - 5Hp & 10 to 30rpm (through VFD)
Basic dia of BOB - 230mm
Reduction gear box for BOB - Ratio - 1:50
Spindle quill movement - 150mm
Spindle head slide - 120mm
Grinding wheel - OD - 570mm & ID - 390mm
Total connected power - 46Hp
Floor space - L - 2000mm
W - 2500mm
H - 1600mm |
|
