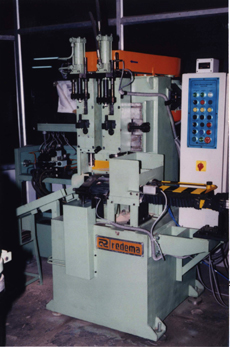

Wear groove drilling machine BL/WGG/200
 |
Characters
Twin spindle automatic drilling.
4nos wear mark drilling in single setting.
Magazine feed.
High volume continuous production.
Automatic ejection after drilling.
Hydraulically operated drill feed.
Pneumatically operated auto feeding.
|
|
Specification
Minimum & Maximum radius - Min 150mm & Max 200mm
Minimum & Maximum Width - Min 120mm & Max 200mm
Spindle speed & Power - 800 & 3Hp
Tool dia - 38mm
Component clamping - Hydraulic
Spindle quill movement - 75mm
Total connected power - 10Hp
Floor space - L - 2000mm
W - 1500mm
H - 1800mm
|
